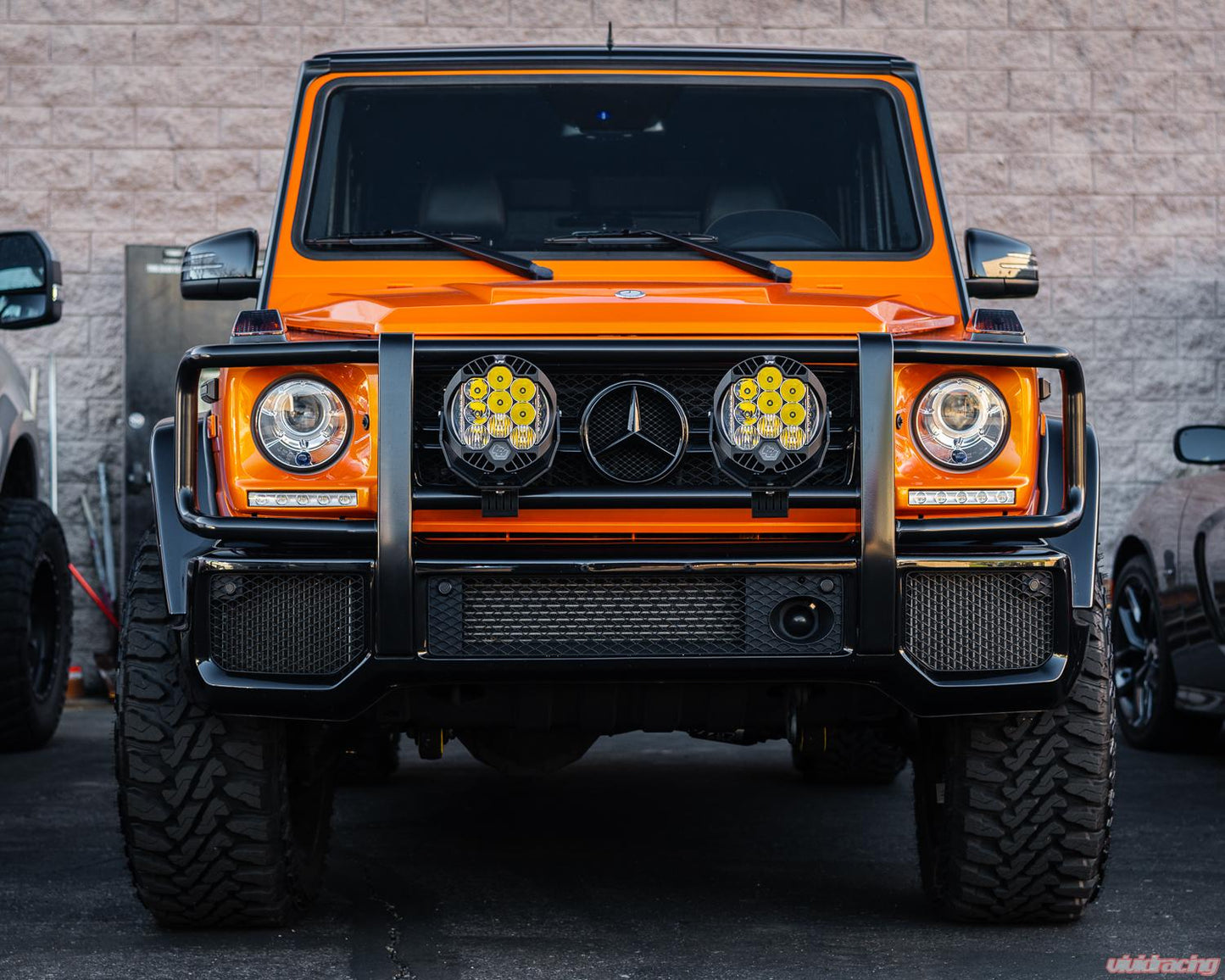

Mercedes-Benz G-Class W463 Brush Guard Light Bracket Kit w/Baja Designs Amber LP6 Pro LED Driving/Combo

Regular price $1,169.90 USD
Regular price Sale price $1,169.90 USD
Sale Sold out
Shipping calculated at checkout.

Features:

  • Secures to 1.67" (43mm) Factory Round Brush Guard
  • Machined from Billet 6061-T6 Aluminum
  • Includes Optional Bracket for Larger Lights
  • Black Powder Coat Finish with Laser Etched VR Logo
  • Includes:
    • 8x M6x20mm Screws
    • 4x M6x40mm Screws
    • 2x M8x20mm Screw
    • 4x M6 Washers
    • 2x M8 Washer
    • 2x Rubber Strip

The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200 degree spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).

To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.

With an amber day-time running light, low power, and high power mode, the LP6 will fulfill all your lighting needs.

Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money Back Guarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Forward Projecting Lumens: 8,600 Utilizing 6 LEDs
  • Forward Projecting Wattage/Amps: 90W / 6.5A
  • IPT Lumens: 1,700 Utilizing 4 LEDs
  • IPT Wattage/Amps: 15W / 1.0A
  • Dimensions: 7.5 inch Height / 6.5 inch Width / 3.2 inch Depth
  • Weight: 4.2lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hardcoated Polycarbonate
  • Housing: Hard Anodized Machined Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Fitment:

  • Mercedes-Benz G-Class W463 2002-2021
