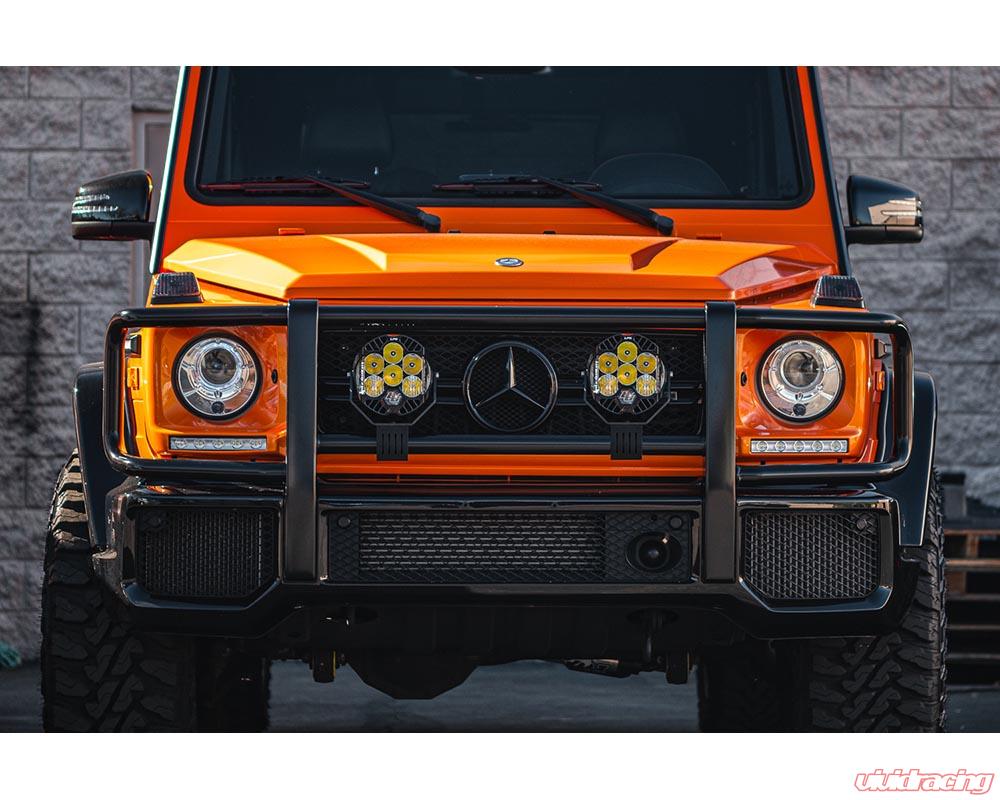

Mercedes-Benz G-Class W463 Brush Guard Light Bracket Kit w/Baja Designs Amber LP9 Sport LED Pod Driving/Combo VR-GW463-910-350013

Regular price $1,119.90 USD
Regular price Sale price $1,119.90 USD
Sale Sold out
Shipping calculated at checkout.

Features:

  • Secures to 1.67" (43mm) Factory Round Brush Guard
  • Machined from Billet 6061-T6 Aluminum
  • Includes Optional Bracket for Larger Lights
  • Black Powder Coat Finish with Laser Etched VR Logo
  • Includes:
    • 8x M6x20mm Screws
    • 4x M6x40mm Screws
    • 2x M8x20mm Screw
    • 4x M6 Washers
    • 2x M8 Washer
    • 2x Rubber Strip

LP9 Sport is perfect for enthusiasts that want the look and features of our successful LP9, but with a little less output intensity and price. The Sport model still includes all of the technology that makes the LP9 series so popular, from Direct Ducted Cooling - that keeps your light cool under stress - to the Integrated Peripheral Technology (IPT), which produces an incredible 200 degree spread of usable light. The LP9 Sport utilizes 9 forward projecting LEDS to produce 6,500 Lumens at 61 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 2,550 lumens at 24 watts.

The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

As with all of our LED offerings, this light features uService technology - allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

Baja Designs Features:

  • Satisfactions Guarantee 30 Day Money BackGuarantee
  • Limited Lifetime Warranty Complete Purchase Protection
  • uService Replaceable Lenses And Optics
  • ClearView All The Light, Right Where You Need It.
  • MoistureBlock Waterproof, Rain Proof, Submersible
  • CopperDrive Only LED Driven At 100 percent
  • 5000K Daylight Less Driver Fatigue, Natural Color

Specifications:

  • Forward Projecting Lumens: 6,500 Utilizing 9 LEDs
  • Forward Projecting Wattage/Amps: 61W / 4.6A
  • IPT Lumens: 2,550 Utilizing 6 LEDs
  • IPT Wattage/Amps: 24W / 1.8A
  • Dimensions: 8 inch Diameter/ 3.25 inch Depth
  • Weight: 6.5lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hardcoated Polycarbonate
  • Housing: Hard Anodized Machined Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware and Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft and Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Fitment:

  • Mercedes-Benz G-Class W463 2002-2021
